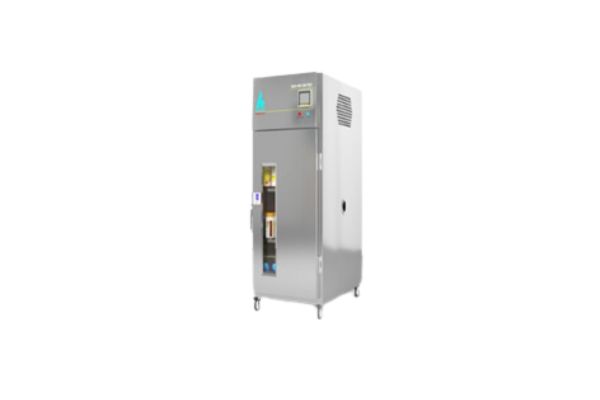

BOD Incubator (GMP Model)
Features:-
- GMP Compliant: Adheres to strict GMP standards, ideal for regulated environments.
- Microprocessor-Based Digital Controller: Offers precise control and monitoring of temperature settings.
- Stainless Steel Construction: Ensures durability and easy maintenance, with rust-resistant internal and external surfaces.
- Temperature Range: Typically between 5°C to 60°C for versatile applications.
- Uniform Air Circulation: Ensures even temperature distribution, enhancing reliability of results.
- Safety Alarms: Notifies users of any temperature deviations, protecting samples from damage.
Amkay Technocraft is renowned for its precision-engineered laboratory and pharmaceutical equipment, including their GMP Model BOD (Biochemical Oxygen Demand) Incubator. This BOD Incubator is designed to meet rigorous Good Manufacturing Practice (GMP) standards, making it ideal for various laboratory applications, particularly in the pharmaceutical, biotechnology, and research industries. The incubator is tailored for consistent and reliable testing of microbial activity and biochemical oxygen demand, essential for waste treatment and environmental analysis.
Insulation | 60mm Thick PUF Insulation. |
Air Circulation | Motor and blower arrangement to have to uniformity of condition under chamber loaded condition. Continuous air circulation and Heating by natural/forced convection for homogenous temperature. |
Heating System | U shaped heaters. |
Refrigeration System | Compressor with CFC Free R 134 A (Eco Friendly) refrigerant having state of art By pass system for continuous run of compressor. |
Printer Interface (Centronic Port) | Facility to print records on printer with set values, actual values, date and time with variable print time interval. |
Stand by Refrigeration System (Optional) | Completely ready for use system in case the regular system fails. |
PLC for Auto change-over (Optional) | Automatic Changeover to stand by refrigeration system if regular system fails. |
Lighting | Interior illumination for working area. |
Safety | Safety alarm system (Sumo Thermostat) to cut off the supply in case of overshoot |
Observation Door | Inside observation glass door with Neoprene rubber gasket |
Port Hole | 50 mm Port Hole with rubber seal to insert sensors for validation purpose. |
Finish | Internal Mirror Polish, External Powder Coated (from both surface) OR Stainless Steel with Dull smooth buffing |
Other | Castor wheels, MCB, Adjustable Tray Height Arrangement, Heavy Duty Latches, and Imported Hinges. |
Power Supply | Works on 230 V AC single phase 50 Hz. |
Pre-Installation Requirement | 1. Stabilized 230 V AC Single Phase 20 amp power supply with MCB and proper Earthing. 2. B.O.D. Incubator to be installed in a cross ventilated, dust free and clean environment (Room Temperature should be below 30°C) 3. Recommended to install the B.O.D. Incubator 2 ft. away from the back wall & 1 ft. from all sides. 4. Drain line to be provided at 2” above the floor level. 5. UPS for Control System upto 1 KVA |
Optional
- CFR 21 Part 11 compliance Window based communication software for data Management.
- Printing Facility
- Extra Trays
- IQ,OQ PQ Documents
Our Products
| Model No | Chamber Size W x D x H (in mm) | Chamber Capacity (in cu. ft) | Capacity (Ltrs) |
|---|---|---|---|
| AT-4545G | 450 x 450 x 450 | 3 | 90 |
| AT4561G | 455 x 410 x 610 | 4 | 112 |
| AT-5085G | 505 x 415 x 830 | 6.6 | 171 |
| AT-6060G | 600 x 600 x 600 | 7 | 200 |
| AT-5686G | 565 x 565 x 865 | 10 | 280 |
| AT-6590G | 650 x 580 x 900 | 16 | 336 |
